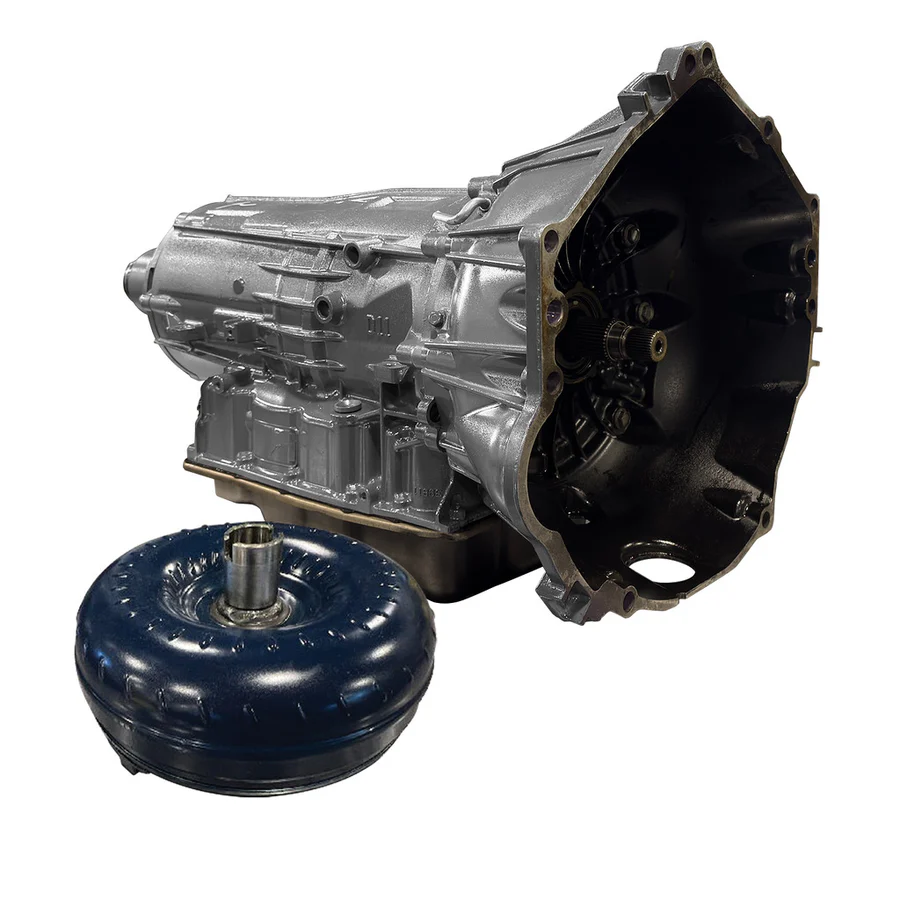

6L90E Automatic Transmission Online Complete Guide, Specs, and Performance Overview
The GM 6L90-E 6-speed automatic transmission is one of General Motors’ most powerful and reliable heavy-duty automatic gearboxes. Designed for trucks, vans, and high-performance applications, the 6L90E is built to handle high torque loads while delivering smooth shifting, improved fuel efficiency, and long-term durability. 6L90E Automatic Transmission Online
At Forged & Stocked Engines, we specialize in performance engines and transmissions, and the 6L90E remains one of the most requested units for swaps, rebuilds, and heavy-duty upgrades.
What is the 6L90E Automatic Transmission Online ?
The 6L90E is a 6-speed, electronically controlled automatic transmission developed by General Motors as an upgraded version of the 6L80E.
6L90E Automatic Transmission Online
It is designed for:
- Heavy-duty pickup trucks
- Full-size vans
- High-torque V8 applications
- Performance engine swaps
This transmission is widely known for its ability to support high torque output and demanding workloads while maintaining modern electronic shift control.
Key Specifications of the 6L90E Automatic Transmission Online
The 6L90E is engineered for strength, efficiency, and durability.
- Transmission Type: 6-speed automatic (electronically controlled)
- Drive Layout: Rear-wheel drive / 4WD applications
- Maximum Torque Capacity: ~700–720 Nm (varies by application)
- Fluid Capacity: ~12–13 quarts (Dexron VI)
- Weight: ~240–250 lbs (with converter)
- Production Years: 2007–present
- RPO Code: MYD
Gear Ratios
The 6L90E uses a wide ratio spread for strong acceleration and efficient cruising:
- 1st Gear: 4.027
- 2nd Gear: 2.364
- 3rd Gear: 1.532
- 4th Gear: 1.152
- 5th Gear: 0.852
- 6th Gear: 0.667
- Reverse: 3.064
This setup gives excellent low-end torque for towing and high-speed efficiency for highway driving.
6L90E vs 6L80E: What’s the Difference?
The 6L90E is essentially a heavy-duty upgraded version of the 6L80E.
Key improvements include:
- Stronger internal components
- More clutch capacity
- Higher torque handling
- Reinforced intermediate shaft
- Better performance under towing loads
While both units are similar in design, the 6L90E is built for heavier vehicles and higher stress applications.
Applications and Vehicles Using the 6L90E
The 6L90E is commonly found in:
- Chevrolet Silverado HD
- GMC Sierra HD
- Chevrolet Express vans
- GMC Savana vans
- Performance applications (LS-based swaps)
Its strength makes it popular not only in OEM vehicles but also in performance builds and engine swaps.
6L90E Automatic Transmission Online
Strength and Performance Capabilities
The 6L90E is known for its ability to handle:
- Heavy towing loads
- High horsepower LS engines
- Commercial duty cycles
- Performance street builds
It is often rated for applications up to 700 horsepower (depending on build and tuning).
However, performance depends heavily on:
- Torque converter quality
- Transmission tuning
- Cooling system setup
- Maintenance intervals
Common Issues and Weak Points
While strong, the 6L90E does have known issues:
Common problems include:
- Torque converter shudder
- 3–5 or 4–5–6 clutch wear
- Valve body wear over time
- Overheating under heavy load
- Hard or delayed shifts
Most issues are related to heat and torque stress, especially in towing or performance use.
Maintenance Tips for Long Life
To maximize the life of your 6L90E transmission:
- Change ATF every 40,000–60,000 miles
- Use only Dexron VI fluid
- Install an upgraded transmission cooler
- Avoid overheating under heavy towing
- Use a quality torque converter for performance builds
Proper maintenance can significantly extend transmission life beyond 150,000 miles.
Why the 6L90E is Popular in Performance Builds
The 6L90E is widely used in LS engine swaps because it offers:
- Strong torque capacity
- Modern 6-speed efficiency
- Wide gear ratio spread
- OEM reliability
- Strong aftermarket support
This makes it a preferred choice for:
- Off-road trucks
- Street performance builds
- Heavy towing setups
- Engine swap projects
Conclusion
The GM 6L90E 6-speed automatic transmission is a powerful and durable gearbox designed for demanding applications. With its strong internal design, wide gear ratios, and electronic control system, it remains one of the most reliable heavy-duty transmissions in the GM lineup.
For builders and customers looking for performance engines and transmissions, the 6L90E is a proven choice that balances strength, efficiency, and modern drivability.
