Buy 4D34 Truck Engine : Complete Specifications, Performance, Applications & Buying Guide
Introduction

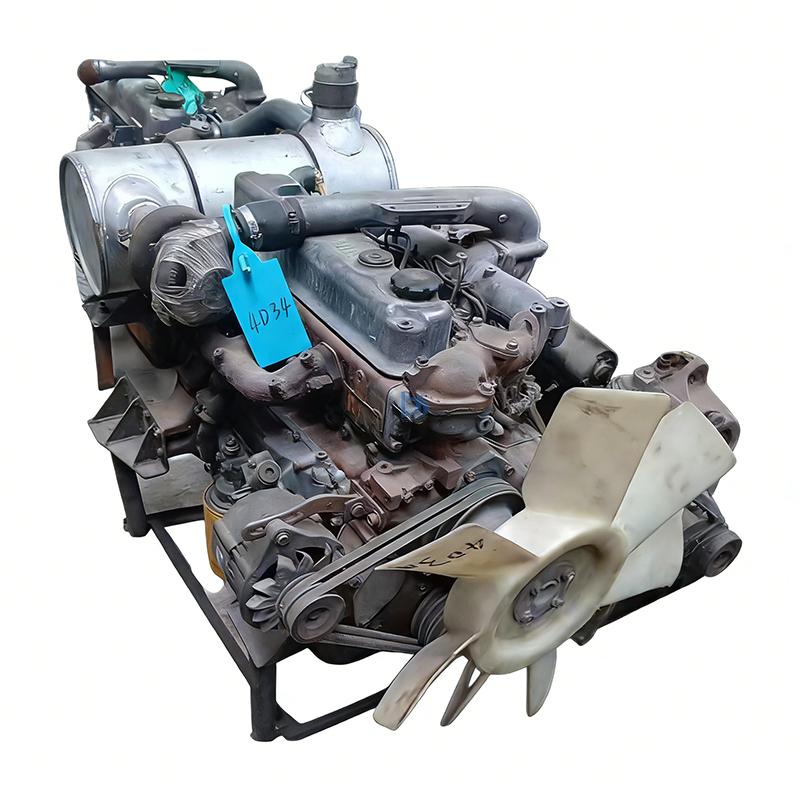

The Mitsubishi 4D34 engine is one of the most reliable medium-duty diesel engines ever produced by Mitsubishi. Known for its durability, fuel efficiency, and excellent low-end torque, the 4D34 has powered thousands of trucks, buses, generators, construction machines, and industrial applications worldwide.Buy 4D34 Truck Engine
Whether you are looking for a replacement engine, a complete engine assembly, or technical specifications for a Mitsubishi Fuso truck, the 4D34 remains a popular choice due to its long service life and readily available spare parts.
Mitsubishi 4D34 Engine Specifications
| Specification | Details |
|---|---|
| Engine Model | Mitsubishi 4D34 |
| Engine Type | 4-Stroke Diesel |
| Configuration | Inline 4-Cylinder |
| Displacement | 3.9L (3,907 cc) |
| Bore × Stroke | 104 mm × 115 mm |
| Cooling System | Water-Cooled |
| Fuel System | Direct Injection |
| Aspiration | Naturally Aspirated / Turbocharged Variants |
| Maximum Power | 115–156 HP (depending on version) |
| Maximum Torque | Up to 373 Nm (variant dependent) |
| Compression Ratio | Approx. 17.5:1 – 18.0:1 |
| Dry Weight | Approx. 325 kg |
These specifications vary depending on the engine version and market configuration.
Key Features of the Mitsubishi 4D34 Engine
Exceptional Reliability
The 4D34 is renowned for operating hundreds of thousands of kilometers with proper maintenance. Its cast-iron construction provides excellent durability for commercial applications.
Strong Low-End Torque
The engine delivers excellent pulling power at low RPM, making it ideal for:
- Commercial trucks
- Cargo transport
- Construction equipment
- Industrial machinery
- Marine applications
Easy Maintenance
The mechanical fuel injection system and simple engine design make servicing straightforward and cost-effective compared to modern electronically controlled diesel engines.
Fuel Efficiency
Many operators continue using the 4D34 due to its balance of performance and fuel economy, especially in medium-duty transport applications.
Common Applications of the 4D34 Engine
The Mitsubishi 4D34 engine is commonly found in:
Trucks
- Mitsubishi Fuso Canter
- Medium-duty delivery trucks
- Cargo transport vehicles
Buses
- School buses
- Shuttle buses
- Passenger transport vehicles
Industrial Equipment
- Air compressors
- Water pumps
- Construction machinery
Marine Applications
- Fishing boats
- Marine generators
- Commercial vessels
Naturally Aspirated vs Turbocharged 4D34
| Feature | Naturally Aspirated | Turbocharged |
|---|---|---|
| Horsepower | Around 115 HP | 122–156 HP |
| Torque | Moderate | Higher |
| Fuel Economy | Good | Better under load |
| Maintenance | Simpler | Slightly more complex |
| Heavy Load Capability | Good | Excellent |
Turbocharged versions are preferred for operators requiring improved performance under heavy loads and hilly terrain.
Why Buy a 4D34 Engine?
A Mitsubishi 4D34 engine is an excellent investment because it offers:
✓ Proven reliability
✓ Long service life
✓ Strong torque output
✓ Easy parts availability
✓ Cost-effective maintenance
✓ Excellent performance for commercial operations
These advantages have made the 4D34 one of the most sought-after Mitsubishi diesel engines in the global used engine market.
Conclusion
The Mitsubishi 4D34 diesel engine remains a trusted powerplant for commercial trucks, industrial equipment, marine applications, and generators. With its 3.9L displacement, robust cast-iron construction, excellent fuel efficiency, and proven durability, the 4D34 continues to be a preferred choice for businesses seeking dependable diesel performance.
