1JZ-GTE Engine for Sale USA – Complete JDM Engine Buying Guide
If you are searching for a 1JZ-GTE engine for sale in the USA, the Toyota 1JZ-GTE remains one of the most desirable JDM turbo engines for performance builds, engine swaps, restorations, drift cars, and high-performance street vehicles.
The Toyota 1JZ-GTE is a 2.5-liter turbocharged inline-six engine from Toyota’s legendary JZ engine family. Produced from 1990 through the 2000s, the 1JZ-GTE became especially popular in vehicles such as the Toyota Chaser, Mark II, Cresta, Soarer, Crown and other Japanese-market performance models. Toyota documentation lists the engine as a water-cooled, longitudinal inline-six DOHC design with 2,491 cc displacement and factory output figures of approximately 280 PS in several applications.
At Forged & Stocked Engines, we help customers looking for quality JDM engines for sale, replacement engines and performance engine packages.
IMAGE 1 — Insert immediately below this introduction:
Use a clean, front three-quarter photograph of a complete Toyota 1JZ-GTE engine.
Toyota 1JZ-GTE Engine Specifications
The 1JZ-GTE combines a straight-six configuration with turbocharging, DOHC cylinder-head technology and electronic fuel injection. The engine has a 2,492 cc displacement, an 86.0 mm bore, and a 71.5 mm stroke. Published technical references identify the engine with a cast-iron cylinder block and seven main-bearing supports.
| Specification | 1JZ-GTE |
|---|---|
| Engine Code | 1JZ-GTE |
| Engine Family | Toyota JZ |
| Configuration | Inline 6-Cylinder |
| Displacement | 2.5L / 2,492 cc |
| Valvetrain | DOHC, 24-Valve |
| Aspiration | Turbocharged |
| Fuel Type | Gasoline |
| Bore | 86.0 mm |
| Stroke | 71.5 mm |
| Compression Ratio | Approx. 8.5:1 early / 9.0:1 VVT-i |
| Factory Power | Approximately 280 PS |
| Firing Order | 1-5-3-6-2-4 |
| Block Material | Cast Iron |
| Timing Drive | Timing Belt |
Specifications can vary according to engine generation, vehicle application and market, so buyers should verify the exact engine identification before purchasing.
1JZ-GTE Twin-Turbo vs VVT-i
One of the most important considerations when buying a JDM 1JZ-GTE engine is determining which generation you need.
Early 1JZ-GTE Twin-Turbo
The earlier 1JZ-GTE used parallel twin CT12A turbochargers and an approximately 8.5:1 compression ratio. Factory-rated output was around 280 PS at 6,200 rpm, with peak torque reported around 363 Nm.
This version is particularly attractive to enthusiasts building period-correct JDM vehicles or projects based around the classic twin-turbo configuration.
1JZ-GTE VVT-i
Later versions introduced VVT-i variable valve timing, a higher approximately 9.0:1 compression ratio and a single CT15B turbocharger. Published specifications list approximately 280 PS at 6,200 rpm and up to about 378 Nm of torque, depending on application.
Toyota used the VVT-i 1JZ-GTE in vehicles including the JZX110 Mark II and JZX110-based applications. Toyota’s own vehicle records identify the 1JZ-GTE as a 2.5-liter, water-cooled inline-six DOHC engine with a 280 PS factory rating.
IMAGE 2 — Insert here, immediately after the VVT-i section:
Use a clear photograph showing a 1JZ-GTE VVT-i engine with the valve cover and turbo system visible.
Vehicles That Used the 1JZ-GTE
The 1JZ-GTE was installed in several highly regarded Toyota performance and luxury models.
Common applications include:
- Toyota Chaser JZX90 and JZX100
- Toyota Mark II JZX90, JZX100 and JZX110
- Toyota Cresta
- Toyota Soarer
- Toyota Crown
- Toyota Verossa
- Toyota Mark II Blit
- Other JDM Toyota performance applications
Toyota’s historical vehicle records confirm 1JZ-GTE applications in models including the Soarer, Mark II, Mark II Blit and Verossa.
Why Buy a 1JZ-GTE Engine?
The 1JZ-GTE continues to attract American JDM enthusiasts because it combines a compact 2.5-liter displacement with six-cylinder smoothness and factory turbocharging.
1. Strong Inline-Six Platform
The straight-six configuration provides excellent mechanical balance and smooth power delivery. The cast-iron block also makes the platform attractive for performance applications.
2. Turbocharged From the Factory
Unlike naturally aspirated 1JZ-GE engines, the 1JZ-GTE was designed as a factory turbocharged performance engine.
3. Excellent Tuning Potential
The 1JZ-GTE has become a popular platform for turbo upgrades, ECU tuning, improved fuel systems, intercooler upgrades and forged internal components.
4. JDM Performance Heritage
The engine is closely associated with legendary Toyota performance cars and remains highly desirable among collectors, drift enthusiasts and engine-swap builders.
5. Ideal for Engine-Swap Projects
Depending on the vehicle, sump configuration, wiring, ECU, transmission and other components, a 1JZ-GTE can be an excellent foundation for a custom RWD performance build.
IMAGE 3 — Insert here:
Use a 1JZ-GTE installed in a performance vehicle or engine bay. This image should visually introduce the engine-swap and tuning section.
Buying a 1JZ-GTE Engine in the USA
When purchasing a 1JZ-GTE engine for sale USA, do not compare engines based on price alone. The condition, completeness, generation and included components can make a significant difference.
Before buying, ask the seller:
- Is the engine compression tested?
- Is the engine VVT-i or non-VVT-i?
- What vehicle did the engine come from?
- What is the engine mileage, if documented?
- Is the turbocharger included?
- Are the intake manifold and throttle body included?
- Is the wiring harness included?
- Is the ECU included?
- Are the alternator and starter included?
- What oil-pan/sump configuration does it have?
- Has the engine been inspected for leaks?
- Are photographs of the actual engine available?
- What warranty or testing documentation is provided?
A complete engine package can save considerable time compared with purchasing a bare long block and sourcing every accessory separately.
IMAGE 4 — Insert here:

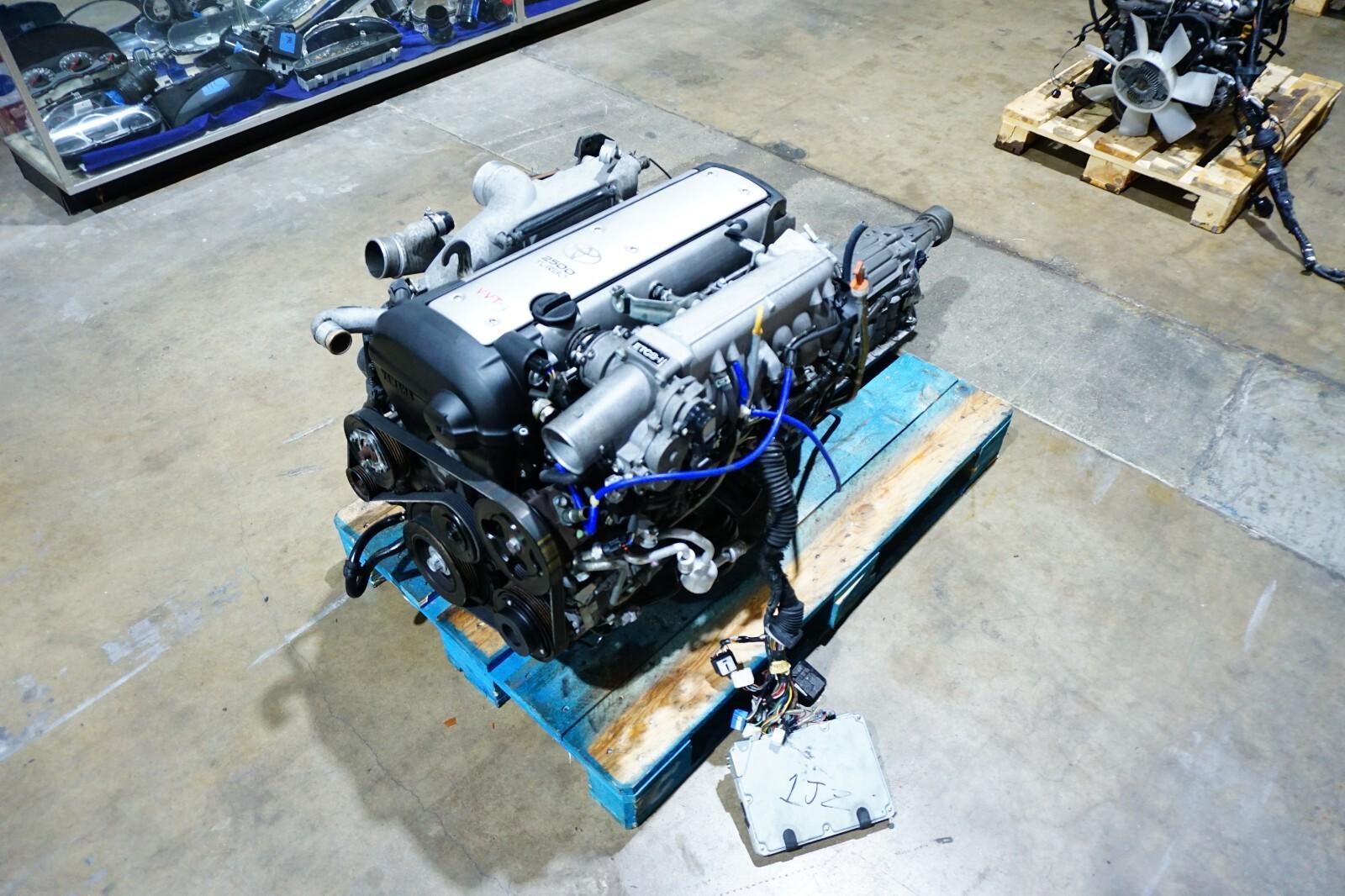

Use a photograph of a complete 1JZ-GTE engine on a pallet or shipping-ready setup. This is the ideal location for a product-quality photograph from Forged & Stocked Engines.
1JZ-GTE Engine Swap Considerations
Before ordering a 1JZ-GTE for an American engine-swap project, confirm the physical and electronic requirements of your vehicle.
Important areas include:
- Engine mounts
- Transmission compatibility
- Bellhousing configuration
- Wiring harness
- ECU
- Fuel system
- Cooling system
- Intercooler and piping
- Exhaust system
- Driveshaft
- Differential
- Oil-pan/sump position
- Power steering configuration
- Air-conditioning requirements
The correct 1JZ-GTE package depends heavily on the vehicle being built. A complete engine package with the correct accessories can simplify the installation process.
1JZ-GTE Performance Upgrades
The 1JZ-GTE has a substantial aftermarket tuning community. Common upgrades include:
- Larger turbocharger
- Front-mount intercooler
- Upgraded fuel injectors
- High-flow fuel pump
- Standalone or upgraded ECU
- Exhaust system
- Intake system
- Boost control
- Performance cams
- Forged pistons
- Forged connecting rods
- Upgraded head studs
- MLS head gasket
- Improved cooling system
For high-power applications, the engine should be professionally inspected and the entire combination—including fuel system, turbocharger, ECU calibration, cooling system and drivetrain—should be matched to the intended power target.
Why Buy From Forged & Stocked Engines?
When purchasing a Toyota 1JZ-GTE engine in the USA, customers want accurate information, dependable communication and an engine package that matches their project.
Forged & Stocked Engines focuses on supplying performance and replacement engines for enthusiasts, workshops, builders and automotive customers.
When available, engine packages can be supplied with important components such as:
- Complete long block
- Turbocharger
- Intake manifold
- Throttle body
- Wiring harness
- ECU
- Alternator
- Starter
- Engine accessories
Exact inclusions depend on the individual engine listing, so customers should confirm the package contents before ordering.
Frequently Asked Questions
How much horsepower does a stock 1JZ-GTE make?
Toyota’s factory rating for several 1JZ-GTE applications was approximately 280 PS, equivalent to roughly 276 horsepower, at 6,200 rpm. Exact specifications vary by generation and market.
Is the 1JZ-GTE a good engine for an engine swap?
Yes. Its inline-six layout, factory turbocharging, JDM performance heritage and extensive tuning ecosystem make it a popular engine-swap platform. However, compatibility depends on the recipient vehicle.
What is the difference between 1JZ-GTE and 2JZ-GTE?
Both belong to Toyota’s JZ family, but the 1JZ-GTE is a 2.5-liter engine while the 2JZ-GTE is a 3.0-liter engine. The 1JZ-GTE is known for its 86 mm bore and 71.5 mm stroke.
Does the 1JZ-GTE have VVT-i?
Later 1JZ-GTE engines use Toyota’s VVT-i system on the intake camshaft. These versions also use a different turbocharger and have a higher compression ratio than the early engines.
Is the 1JZ-GTE turbocharged?
Yes. The 1JZ-GTE was developed as a turbocharged performance engine. Early versions used parallel twin turbochargers, while later VVT-i versions used a single turbocharger.
What should I check before buying a used 1JZ-GTE?
Check the engine code, generation, compression results, oil leaks, turbocharger condition, mileage documentation, included accessories, wiring, ECU, sump configuration and warranty terms.
Buy a 1JZ-GTE Engine for Sale USA
If you’re looking for a 1JZ-GTE engine for sale in the USA, Forged & Stocked Engines can help you find the right engine configuration for your project.
Whether you are building a Toyota Chaser, Mark II, Soarer, drift car, RWD engine-swap project or high-performance street car, choosing the correct 1JZ-GTE package is an important first step.
Contact Forged & Stocked Engines to check current 1JZ-GTE engine availability, specifications, package contents, shipping options and pricing.
IMAGE 5 — Insert immediately before the final call-to-action:
Use your own high-quality product photograph of the actual 1JZ-GTE engine being offered for sale. Ideally show the engine from a clean three-quarter angle with accessories visible.
Final Thoughts
The Toyota 1JZ-GTE remains one of the most recognizable JDM turbocharged inline-six engines. With its 2.5-liter displacement, factory turbocharging, strong aftermarket support and extensive Toyota performance heritage, it continues to be an attractive choice for American enthusiasts searching for a JDM performance engine.
If you are ready to buy a 1JZ-GTE engine in the USA, focus on verified engine condition, correct generation, complete components and compatibility with your vehicle rather than choosing solely on price.
Forged & Stocked Engines — Performance Engines for Enthusiasts, Builders and Engine-Swap Projects.
