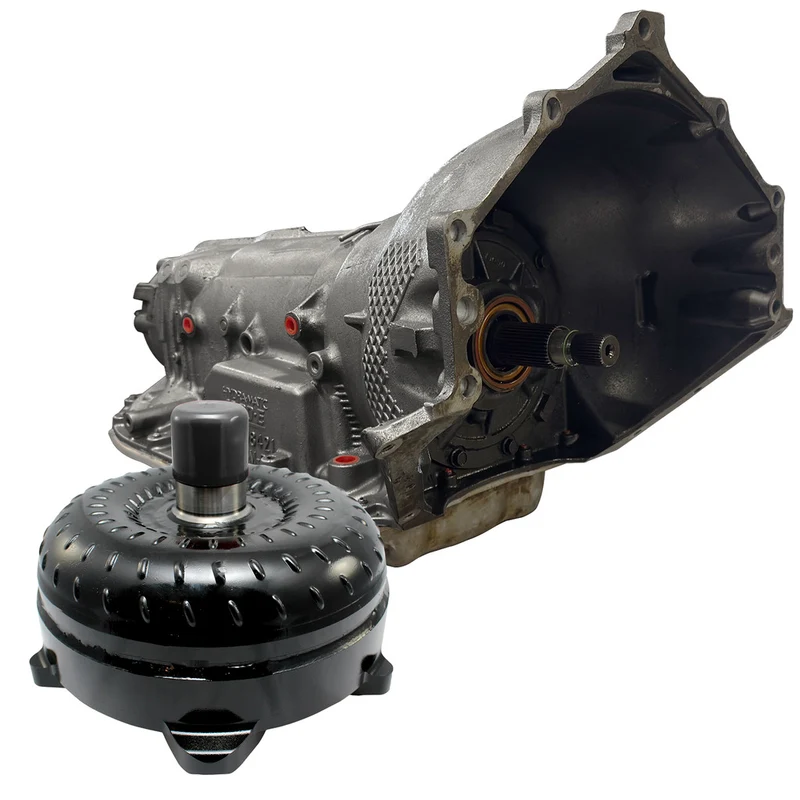

4L80E for Sale USA – Rebuilt, Remanufactured & Performance 4L80E Transmissions
4L80E for sale in the USA, the GM 4L80E is one of the most popular heavy-duty automatic transmissions for LS swaps, V8 performance builds, trucks, muscle cars, off-road vehicles, towing applications, and high-performance projects.
At Forged & Stocked Engines, we offer 4L80E transmission solutions for customers looking for dependable automatic transmission performance, including rebuilt, remanufactured, and performance-oriented units. Our goal is to help U.S. buyers find the right 4L80E transmission for their engine, vehicle, horsepower level, and intended use.
Shop 4L80E Transmissions for Sale in the USA
Looking for a 4L80E transmission for sale near you or anywhere in the United States? The right transmission depends on several factors, including whether your vehicle is 2WD or 4WD, engine type, horsepower, torque, controller requirements, torque converter selection, and intended driving conditions.
The GM 4L80E is a four-speed electronically controlled automatic transmission derived from the heavy-duty Turbo-Hydramatic 400 family. It combines a strong transmission design with an electronically controlled overdrive fourth gear, making it particularly attractive for street, towing, racing, and LS-swapped vehicles.
What Is a 4L80E Transmission?
The GM 4L80E is a four-speed longitudinal automatic transmission designed for rear-wheel-drive applications. Production began in the early 1990s, and the transmission was used in various GM trucks, vans, commercial vehicles, and other heavy-duty applications.
Unlike the smaller 4L60E, the 4L80E was designed around a much heavier-duty architecture. It is therefore frequently selected for performance builds where additional transmission strength is required.
The 4L80E features:
- Four forward gears
- Electronic shift control
- Lock-up torque converter
- Overdrive fourth gear
- Rear-wheel-drive configuration
- Aluminum transmission case
- Heavy-duty planetary and clutch architecture
- Compatibility with many GM V8 applications
- Strong aftermarket support
- Availability in 2WD and 4WD configurations
The standard gear ratios are approximately 2.482:1 first, 1.482:1 second, 1.000:1 third, and 0.750:1 fourth, with a reverse ratio of approximately 2.077:1.
4L80E Transmission Specifications
| Specification | 4L80E |
|---|---|
| Manufacturer | General Motors |
| Transmission Type | 4-Speed Automatic |
| Control | Electronic |
| Drive Configuration | Longitudinal RWD |
| Forward Gears | 4 |
| Reverse | 1 |
| 1st Gear | 2.482:1 |
| 2nd Gear | 1.482:1 |
| 3rd Gear | 1.000:1 |
| 4th Gear | 0.750:1 |
| Reverse Gear | 2.077:1 |
| Torque Converter | Lock-Up |
| Converter Size | Approximately 310 mm |
| Case Material | Die-Cast Aluminum |
| Dry Weight | Approximately 230–260 lb, depending on specification |
| Electronic Control | Yes |
| Overdrive | Yes |
Published GM specifications list a dry weight around 236 lb and a wet weight around 260 lb, while other 4L80E specifications vary somewhat by configuration and equipment.
Why Buy a 4L80E Transmission?
The biggest reason buyers choose a 4L80E transmission is its combination of strength, overdrive gearing, electronic control, and aftermarket availability.
For a high-powered street car or LS swap, the 4L80E can provide a significant advantage over smaller automatic transmissions when the application requires additional durability.
1. Heavy-Duty Design
The 4L80E is based heavily on the architecture of the legendary TH400. This heritage is one reason it has become popular among performance enthusiasts and engine-swapping customers.
2. Overdrive
The 0.75:1 fourth gear reduces engine RPM during highway cruising compared with a direct-drive transmission.
This makes the 4L80E particularly attractive for vehicles that need both performance and highway drivability.
3. Electronic Control
The 4L80E uses electronic controls for shifting and torque-converter operation. This means buyers can use an appropriate transmission control system to manage shift points, line pressure, torque-converter lockup, and other functions.
4. Excellent LS-Swap Transmission
The 4L80E is frequently used with GM LS-series engines, making it a popular choice for:
- LS1 swaps
- LS2 swaps
- LS3 swaps
- LQ4 swaps
- LQ9 swaps
- 5.3L LS builds
- 6.0L LS builds
- 6.2L LS builds
- Turbo LS builds
- Supercharged LS builds
The transmission can also be used with small-block and big-block Chevrolet applications when the correct components and control system are selected.
4L80E for LS Swap
One of the largest markets for the 4L80E transmission in the USA is the LS engine swap market.
If you are installing an LS engine into a classic Chevrolet, GMC truck, muscle car, street rod, or custom vehicle, a 4L80E can provide a combination of heavy-duty transmission capability and overdrive.
However, a successful LS-to-4L80E swap requires more than simply bolting the transmission to the engine.
Depending on the vehicle, the installation may require:
- Transmission controller
- Correct torque converter
- Flexplate
- Crossmember modifications
- Driveshaft modifications
- Transmission mount
- Wiring harness
- Cooler lines
- Transmission cooler
- Correct output shaft/yoke
- Speed sensor integration
- Appropriate transmission calibration
Chevrolet Performance documentation also provides dedicated 4L80 installation hardware for certain applications, illustrating that correct flexplate, bellhousing, converter and mounting components are important during installation.
4L80E 2WD vs 4WD
When buying a 4L80E for sale, one of the most important questions is whether you need a 2WD or 4WD transmission.
2WD 4L80E
A 2WD 4L80E is commonly used in:
- Muscle cars
- Street rods
- Drag cars
- LS swaps
- Classic trucks
- Rear-wheel-drive performance vehicles
4WD 4L80E
A 4WD version is commonly used in:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Suburban
- Chevrolet Tahoe
- GMC Yukon
- Off-road builds
- 4×4 trucks
- Heavy-duty towing applications
The output configuration and transfer-case compatibility must be verified before purchasing.
Always provide your vehicle year, make, model, engine, drivetrain, and intended application when requesting a 4L80E.
Rebuilt 4L80E for Sale USA
A rebuilt 4L80E transmission can be an excellent option for customers who want to restore a used transmission while upgrading important internal components.
Depending on the builder and specification, a rebuilt 4L80E may include new or upgraded:
- Clutch packs
- Steel plates
- Seals
- Gaskets
- Bushings
- Bearings
- Bands
- Sprag
- Solenoids
- Valve-body components
- Pump components
- Wiring harness
- Filter
- Internal components
The exact parts installed vary by transmission builder and performance level, so buyers should always ask for a detailed build sheet.
Current U.S. listings demonstrate the wide price range in the market. For example, recent listings include rebuilt 4L80E units around $2,000–$2,400, while remanufactured units from major retailers can be around $2,400–$2,800 before applicable core charges and other costs.
Remanufactured 4L80E Transmission
A remanufactured 4L80E generally undergoes a more systematic rebuilding process than a basic used transmission.
Depending on the supplier, the process can include:
- Complete disassembly
- Cleaning
- Case inspection
- Internal component inspection
- Replacement of worn components
- Seal and gasket replacement
- Valve-body inspection
- Solenoid testing or replacement
- Torque-converter inspection or replacement
- Reassembly
- Pressure testing
- Dyno testing where applicable
Some current U.S. remanufactured 4L80E products are advertised with warranties of three years, while other suppliers offer different warranty terms.
Performance 4L80E Transmission
For engines producing significantly more power than stock, a standard used 4L80E may not be the best choice.
A performance-built 4L80E can be configured with upgraded components designed for increased power and demanding use.
Potential performance upgrades can include:
- Upgraded clutch packs
- Increased clutch capacity
- Hardened shafts
- Upgraded sprag
- Improved valve-body calibration
- Increased line pressure
- Upgraded pump components
- Performance shift kit
- Upgraded transmission cooler
- Deep transmission pan
- High-performance torque converter
Some aftermarket builders advertise modified 4L80E units for applications around 750 horsepower and beyond, but actual capability depends heavily on the specific build, torque output, converter, calibration, vehicle weight, traction and driving conditions.
Do not choose a transmission based solely on a horsepower number. Torque, vehicle weight, tire traction, usage and transmission specification are equally important.
4L80E Horsepower Capacity
There is no single universal horsepower rating that applies to every 4L80E.
The original factory transmission specifications are considerably different from a professionally upgraded performance transmission.
A stock 4L80E was designed around heavy-duty truck applications, while performance builders can modify the transmission for substantially higher-output engines.
For example, a professionally rebuilt 4L80E advertised for approximately 750 HP/TQ can contain upgrades such as a dual-fed transmission, upgraded clutch components, improved pump components and upgraded valve-body components.
For a performance build, tell your transmission supplier:
- Engine horsepower
- Engine torque
- Naturally aspirated or forced induction
- Vehicle weight
- Tire size
- Rear axle ratio
- Intended use
- Street/strip/off-road/towing application
This information is much more useful than horsepower alone when selecting a transmission.
4L80E Transmission for Sale Near Me
If you are searching Google for:
“4L80E transmission for sale near me”
or
“4L80E transmission for sale USA,”
make sure you compare more than the advertised price.
Important factors include:
Transmission condition
Is it used, rebuilt, remanufactured or performance-built?
Warranty
How long is the warranty and what does it cover?
Torque converter
Is the converter included?
Core charge
Does the advertised price require an exchange core?
Shipping
Does the seller ship nationwide?
2WD or 4WD
Does the transmission match your drivetrain?
Controller
Is an electronic transmission controller required or included?
Build specification
What internal components were replaced or upgraded?
For example, current U.S. remanufactured listings can have a refundable core charge in addition to the transmission price.
How Much Does a 4L80E Cost?
The price of a 4L80E varies significantly depending on condition and specification.
Typical U.S. market categories include:
| 4L80E Type | Typical Market Position |
|---|---|
| Used 4L80E | Lowest-cost option |
| Rebuilt 4L80E | Mid-range |
| Remanufactured 4L80E | Mid-to-high range |
| Performance 4L80E | Higher price |
| High-horsepower custom build | Premium |
4L80E Transmission Core Charge
Many U.S. transmission suppliers use a core exchange program.
This means you may pay:
Transmission price + refundable core charge
and receive the core charge back after returning an acceptable old transmission.
For example, some current U.S. listings show an approximately $650–$800 refundable core charge in addition to the advertised transmission price.
Before purchasing, ask:
- Is a core required?
- How much is the core charge?
- What condition must the core be in?
- Who pays return shipping?
- When is the core refund issued?
4L80E Transmission Torque Converter
The torque converter is an important part of a 4L80E installation.
Depending on the application, customers may choose a stock-style replacement converter or a performance converter with specifications matched to the engine and vehicle.
For a performance build, converter selection should consider:
- Engine displacement
- Camshaft
- Turbocharger
- Supercharger
- Naturally aspirated setup
- Rear axle ratio
- Tire diameter
- Vehicle weight
- Intended RPM range
- Street or drag-racing use
Some remanufactured 4L80E packages currently include a torque converter, while others may price it separately.
4L80E Transmission Controller
Because the 4L80E is electronically controlled, an appropriate controller is an important consideration for many engine swaps.
A transmission controller can manage functions such as:
- Shift timing
- Shift points
- Line pressure
- Torque-converter lockup
- Throttle position
- Vehicle speed
- Engine load
Some aftermarket controllers are specifically designed for GM electronic automatic transmissions and can be useful for LS swap projects.
Before purchasing, verify compatibility between the controller, engine management system, transmission year/configuration and vehicle wiring.
4L80E vs 4L60E
The 4L80E vs 4L60E comparison is one of the most common questions among GM performance enthusiasts.
| Feature | 4L80E | 4L60E |
|---|---|---|
| Forward gears | 4 | 4 |
| Electronic control | Yes | Yes |
| Overdrive | Yes | Yes |
| Heavy-duty design | Yes | Lighter-duty |
| LS swap popularity | Very high | Very high |
| Typical use | Performance/truck/heavy duty | Street/light-duty |
| Size/weight | Larger/heavier | Smaller/lighter |
The 4L80E is generally chosen when additional transmission strength is more important than compact size and weight.
The 4L60E can be attractive where packaging, cost and lower vehicle weight are priorities.
4L80E Applications
The 4L80E has been used across numerous GM applications and is particularly popular today for engine swaps and custom builds.
Common project applications include:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Suburban
- Chevrolet Tahoe
- GMC Yukon
- Chevrolet Express
- GMC Savana
- Chevrolet Camaro projects
- Chevrolet Chevelle projects
- Chevrolet Nova projects
- Classic Chevrolet trucks
- LS-swapped vehicles
- Custom street cars
- Drag racing builds
- Off-road vehicles
Compatibility varies by year and configuration, so always verify the exact transmission before ordering.
What to Check Before Buying a 4L80E
Before ordering a 4L80E transmission for sale in the USA, provide as much information as possible.
Vehicle information
- Year
- Make
- Model
- 2WD or 4WD
- Vehicle weight
Engine information
- Engine family
- Displacement
- Horsepower
- Torque
- Naturally aspirated/turbo/supercharged
Drivetrain information
- Rear axle ratio
- Tire size
- Driveshaft configuration
- Transfer case if applicable
Usage
- Daily driving
- Street performance
- Drag racing
- Off-road
- Towing
- Track use
This information helps determine the correct transmission specification and torque converter.
Buy a 4L80E Transmission in the USA
If you’re looking for a 4L80E for sale USA, Forged & Stocked Engines can help you identify the right transmission configuration for your project.
Whether you need a used 4L80E, rebuilt 4L80E, remanufactured 4L80E, 2WD 4L80E, 4WD 4L80E, LS swap transmission, or performance 4L80E, selecting the correct specification is essential.
We recommend confirming the application before purchasing so that the transmission, torque converter, controller, output configuration and installation components are appropriate for your vehicle.
Request a 4L80E Transmission Quote
Looking for a 4L80E transmission for sale in the USA?
Contact Forged & Stocked Engines with your:
- Vehicle year, make and model
- Engine
- 2WD or 4WD
- Horsepower
- Torque
- Intended application
- Preferred transmission condition
- Shipping ZIP code
We can help you determine the appropriate 4L80E automatic transmission for your project and provide a quote based on your requirements.
Frequently Asked Questions
Is the 4L80E a good transmission?
Yes. The 4L80E is widely regarded as a strong four-speed electronically controlled automatic transmission and is particularly popular for high-power GM builds, trucks and LS swaps.
Is a 4L80E stronger than a 4L60E?
Generally, yes. The 4L80E was designed as a heavier-duty transmission and is commonly selected for applications where additional transmission strength is required.
How much does a 4L80E weigh?
Depending on configuration, published specifications put the 4L80E around 230–260 lb.
Does a 4L80E require a computer?
Yes. The 4L80E is electronically controlled, so an appropriate control system is required for proper electronic operation.
Can a 4L80E handle an LS engine?
Yes. The 4L80E is widely used with LS-family engines, provided the correct components and electronic controls are used.
Does the 4L80E have overdrive?
Yes. Fourth gear has a 0.75:1 overdrive ratio, making it useful for highway driving.
Is the 4L80E good for towing?
The transmission’s heavy-duty design makes it a popular choice for truck and towing applications, although the complete vehicle drivetrain must be evaluated for the intended towing load.
Should I buy a used or rebuilt 4L80E?
A used transmission can provide a lower purchase price, while a properly rebuilt or remanufactured unit can provide greater confidence through replaced wear components and warranty coverage. The best option depends on your budget and application.
Final Thoughts
The 4L80E remains one of the most popular GM automatic transmissions for performance builds, LS swaps, trucks and custom vehicles in the United States.
Its combination of a heavy-duty design, electronic controls and 0.75:1 overdrive makes it an attractive choice for enthusiasts who want a transmission capable of supporting both performance and highway driving.
When searching for a 4L80E for sale USA, don’t choose solely based on price. Compare the transmission’s condition, internal upgrades, 2WD/4WD configuration, torque converter, controller requirements, warranty, core charge and intended power level.
For the best results, match the transmission to the complete vehicle and engine combination rather than selecting a transmission based only on horsepower.
- 4L80E transmission for sale
- 4L80E transmission USA
- 4L80E for sale
- rebuilt 4L80E transmission
- remanufactured 4L80E
- performance 4L80E transmission
- 4L80E transmission price
- 4L80E transmission for sale near me
- 4L80E LS swap
- 4L80E 2WD
- 4L80E 4WD
- GM 4L80E transmission
- 4L80E automatic transmission
- 4L80E transmission rebuild
- high performance 4L80E
- 4L80E transmission USA
- buy 4L80E transmission
- 4L80E transmission for LS engine
Reviews
There are no reviews yet.
