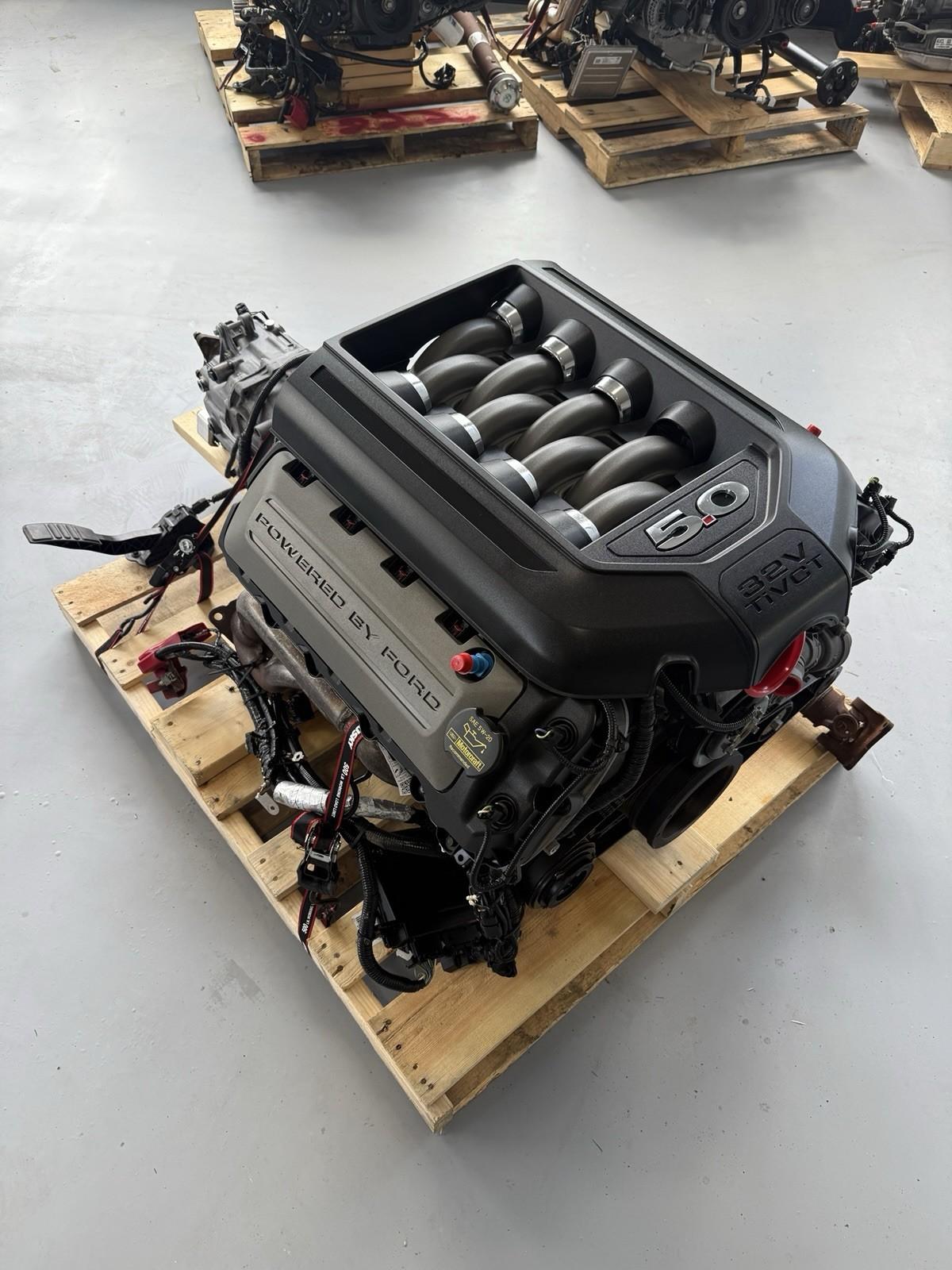

Gen 4 Coyote 5.0L Engine for Sale USA – Ford Mustang GT & Dark Horse Coyote V8

If you are searching for a Gen 4 Coyote 5.0L engine for sale in the USA, Forged & Stocked Engines offers access to high-performance Coyote V8 engine options for Mustang builds, engine replacements, restorations, performance projects, and custom applications.

The Gen 4 5.0L Coyote V8 represents the latest generation of Ford’s naturally aspirated 5.0-liter Coyote engine family. Introduced with the seventh-generation Mustang, the Gen 4 Coyote combines a 5.0-liter DOHC V8 architecture with dual fuel injection, Ti-VCT variable camshaft timing, high-flow cylinder heads, dual throttle bodies, and a lightweight aluminum block. Ford Performance lists the Gen 4 Mustang GT crate engine at 480 horsepower and 415 lb-ft of torque, while the Gen 4 Dark Horse version is rated at 500 horsepower.

Gen 4 Coyote 5.0L Engine Specifications

The Gen 4 Coyote is a 5.0-liter, 32-valve, DOHC V8 designed for high-rpm performance while maintaining the street drivability expected from a modern Mustang powerplant.

Specification	Gen 4 Mustang GT	Gen 4 Dark Horse
Engine	5.0L Coyote V8	5.0L Coyote V8
Configuration	DOHC 32-valve V8	DOHC 32-valve V8
Displacement	5.0L / 302 cu. in.	5.0L / 302 cu. in.
Compression Ratio	12.0:1	12.0:1
Bore	93.0 mm	93.0 mm
Stroke	92.7 mm	92.7 mm
Fuel System	Port + Direct Injection	Port + Direct Injection
Valve Timing	Ti-VCT	Ti-VCT
Block	Aluminum	Aluminum
Cylinder Liners	Plasma-transferred wire arc	Plasma-transferred wire arc
Horsepower	480 hp	500 hp
Torque	415 lb-ft	418 lb-ft

Ford Performance specifies the Gen 4 Mustang GT crate engine at 480 hp and 415 lb-ft, while its Gen 4 Dark Horse long block is rated at 500 hp and uses a 12.0:1 compression ratio, 93 mm bore and 92.7 mm stroke.

What Is the Gen 4 Coyote 5.0L Engine?

The Gen 4 Coyote 5.0L is Ford’s fourth-generation version of the Coyote V8 engine. It was developed for the seventh-generation Mustang and incorporates several improvements over earlier Coyote generations.

The engine uses an all-aluminum construction with a plasma-transferred wire arc cylinder-wall coating. Ford also uses cross-bolted main bearing caps and reinforced main bearing bulkheads to provide bottom-end strength.

For performance enthusiasts, one of the most important characteristics is the combination of traditional naturally aspirated V8 displacement with modern fuel and valve-control technology.

480 HP Gen 4 Coyote Mustang GT Engine

The standard Gen 4 Mustang GT Coyote engine produces 480 horsepower and 415 lb-ft of torque according to Ford Performance’s crate-engine specifications.

The engine features:

• 5.0-liter displacement
• 32-valve DOHC configuration
• Dual independent variable camshaft timing
• Port and direct fuel injection
• High-flow cylinder heads
• Dual throttle bodies
• 12.0:1 compression ratio
• Aluminum cylinder block
• Forged steel crankshaft
• Plasma-transferred wire arc cylinder-wall technology

This makes the Gen 4 Mustang GT engine an attractive option for customers looking for a modern Coyote engine for a replacement, restoration, or performance build.

500 HP Gen 4 Coyote Dark Horse Engine

For customers looking for additional factory performance, the Gen 4 Coyote Dark Horse 5.0L is an important option.

Ford Performance rates the Dark Horse long block at 500 horsepower. It uses forged steel connecting rods, a forged steel crankshaft, 12.0:1 compression, and the same 93 mm × 92.7 mm bore-and-stroke dimensions associated with the Gen 4 architecture.

The Dark Horse version is particularly attractive for enthusiasts building a high-performance Mustang or looking for a factory-based Coyote foundation for a modified application.

Gen 4 Coyote Engine for Sale in the USA

At Forged & Stocked Engines, we understand that U.S. buyers need more than an engine listing. Before purchasing a Gen 4 Coyote engine, customers should know exactly what configuration they are buying and what components are included.

Depending on inventory and configuration, Gen 4 Coyote engines may be available as:

Complete Gen 4 Coyote Engine

A complete engine may include major external components and accessories, depending on the specific unit. Buyers should always confirm the exact inventory list before purchase.

Gen 4 Coyote Long Block

A long block is generally the engine’s major internal assembly, including the block, cylinder heads, crankshaft, pistons and related internal components.

Ford’s Gen 4 Dark Horse long block does not include components such as the intake manifold/throttle bodies, fuel rails/injectors, alternator, exhaust manifolds, flywheel/flexplate, engine wiring or PCM.

Gen 4 Coyote Crate Engine

A crate engine can be a convenient solution for customers who want a factory-based engine package for a replacement or performance project. Ford Performance offers Gen 4 Mustang GT crate-engine configurations, including versions with a flywheel and automatic-transmission applications.

Gen 4 Coyote 5.0L Engine Applications

The Gen 4 Coyote is primarily associated with the seventh-generation Ford Mustang.

Potential applications include:

• 2024+ Ford Mustang GT
• Ford Mustang Dark Horse
• Mustang performance builds
• Engine replacement projects
• Custom vehicle builds
• Restomod projects
• High-performance street cars
• Track-focused Mustang projects
• Naturally aspirated V8 swaps

Before ordering an engine for a swap, customers should verify engine electronics, wiring, PCM requirements, fuel-system compatibility, transmission compatibility, exhaust configuration, accessory requirements and vehicle-specific programming.

Why Choose a Gen 4 Coyote Engine?

Modern Coyote V8 Technology

The Gen 4 engine combines traditional 5.0-liter V8 performance with modern technologies including direct and port fuel injection and Ti-VCT.

Strong Aluminum Construction

The aluminum block incorporates plasma-transferred wire arc cylinder-wall technology, while the bottom end uses cross-bolted main bearing caps and reinforced bulkheads.

High Compression

The 12.0:1 compression ratio contributes to the engine’s naturally aspirated performance characteristics.

Factory 480–500 HP Capability

Depending on configuration, Gen 4 Coyote engines provide 480 hp in Mustang GT specification and 500 hp in Dark Horse specification.

Excellent Performance Upgrade Platform

The Gen 4 Coyote provides a modern foundation for enthusiasts who want to build a powerful naturally aspirated Mustang or develop a custom performance application.

Gen 4 Coyote vs. Earlier Coyote Engines

The Coyote engine family has evolved considerably since its introduction. Gen 4 brings updated fuel delivery, cylinder-head technology, intake design, variable camshaft timing and other changes.

If you are replacing an earlier Coyote engine with a Gen 4 unit, compatibility should not be assumed.

Important areas to check include:

• Engine wiring harness
• PCM/ECU
• Fuel system
• Throttle-body configuration
• Intake manifold
• Exhaust manifolds
• Transmission
• Flywheel or flexplate
• Engine mounts
• Cooling system
• Accessory drive
• Sensors
• Vehicle programming

A Gen 4 engine may require additional components or electronic integration depending on the vehicle and intended application.

What Should You Check Before Buying a Gen 4 Coyote Engine?

Before purchasing a Gen 4 Coyote 5.0L engine for sale, ask the seller for the following information:

1. Engine configuration
Confirm whether you are purchasing a Mustang GT 480-hp engine or a Dark Horse 500-hp configuration.

2. Engine condition
Determine whether the engine is new, used, rebuilt, remanufactured, or a take-out engine.

3. Mileage
For used engines, request documented mileage when available.

4. Compression and leak-down information
For used engines, testing information can provide valuable insight into engine condition.

5. Included components
Confirm whether the engine includes intake, throttle bodies, injectors, accessories, starter, alternator, wiring, PCM, exhaust components and flywheel/flexplate.

6. Compatibility
Verify that the engine is appropriate for your vehicle or swap application.

7. Shipping
Ask about crate dimensions, freight shipping, commercial/residential delivery requirements and liftgate requirements.

8. Warranty
Review the seller’s warranty terms before completing the purchase.

Gen 4 Coyote Engine Shipping Across the USA

Forged & Stocked Engines can help customers identify suitable engine configurations and arrange shipping options for U.S. buyers, subject to inventory and destination.

Engines are heavy automotive components and are commonly prepared for freight transportation using appropriate crating, palletizing and protective packaging.

When requesting a shipping quote, provide:

• Full name
• Delivery ZIP code
• Residential or commercial address
• Liftgate requirement
• Engine configuration
• Quantity
• Preferred delivery method

For commercial customers, providing a business address with suitable unloading equipment may help simplify freight delivery.

Gen 4 Coyote 5.0L Engine Price

The price of a Gen 4 Coyote engine varies significantly depending on configuration, condition, mileage, included accessories and whether the engine is a complete assembly or long block.

A used Gen 4 Coyote engine, new Ford Performance crate engine, and Dark Horse long block should not be treated as equivalent products.

For an accurate quotation, contact Forged & Stocked Engines with the exact engine configuration you need.

Frequently Asked Questions

Is the Gen 4 Coyote a 5.0L engine?

Yes. The Gen 4 Coyote is a 5.0-liter, 32-valve DOHC V8, commonly referred to as the 5.0 Coyote or 302 cubic-inch Coyote engine.

How much horsepower does a Gen 4 Coyote make?

The Gen 4 Mustang GT crate engine is rated at 480 horsepower and 415 lb-ft of torque. The Gen 4 Dark Horse long block is rated at 500 horsepower.

What is the Gen 4 Coyote compression ratio?

Ford Performance lists a 12.0:1 compression ratio for the Gen 4 Mustang GT crate engine and Dark Horse long block.

Is the Gen 4 Coyote naturally aspirated?

Yes. The standard Gen 4 Mustang GT and Dark Horse 5.0L Coyote engines are naturally aspirated V8 engines.

Can I use a Gen 4 Coyote in an older Mustang?

Potentially, but it is not necessarily a simple bolt-in installation. Electronics, wiring, PCM, fuel delivery, accessories, exhaust, transmission and other components may require modification or replacement.

Does a Gen 4 Coyote engine come with the wiring harness and PCM?

Not necessarily. Component inclusion depends on the specific engine package. For example, Ford’s Gen 4 Dark Horse long block does not include engine wiring or PCM.

Is the Gen 4 Coyote good for performance builds?

Yes. Its 5.0-liter displacement, high compression, modern cylinder heads, variable camshaft timing and factory performance make it a strong foundation for naturally aspirated and modified performance applications.

Buy a Gen 4 Coyote 5.0L Engine in the USA

If you are looking for a Gen 4 Coyote 5.0L engine for sale in the USA, Forged & Stocked Engines can help you identify the right engine configuration for your project.

Whether you need a 2024+ Mustang GT Coyote engine, Gen 4 Coyote crate engine, Dark Horse 5.0L engine, Coyote long block, or complete engine assembly, verify the exact specification and included components before ordering.

Contact Forged & Stocked Engines today for Gen 4 Coyote 5.0L engine availability, specifications, pricing and U.S. freight shipping options.
