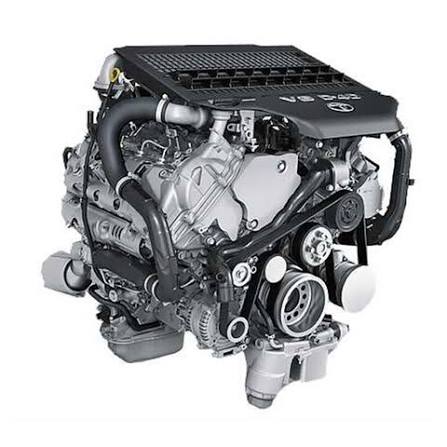

Toyota 1VD-FTV V8 Diesel Engine for Sale USA – 4.5L V8 Twin-Turbo Land Cruiser Engine
Toyota 1VD-FTV V8 Diesel Engine for Sale USA
Looking for a Toyota 1VD-FTV V8 diesel engine for sale in the USA? The 1VD-FTV is one of Toyota’s most recognized large-displacement diesel engines, developed for demanding applications including the Toyota Land Cruiser 200 Series and Land Cruiser 70 Series.
The 1VD-FTV is a 4.5-liter V8 turbo-diesel engine with 4,461 cc displacement, a 32-valve DOHC cylinder head design and common-rail direct fuel injection. Depending on the vehicle, market and engine calibration, output specifications vary, with Toyota documentation listing versions ranging from approximately 162 kW to 195 kW and torque outputs from 615 Nm to 650 Nm.
At Forged & Stocked Engines, the Toyota 1VD-FTV is an excellent option for customers searching for a replacement engine, Land Cruiser engine replacement, diesel powertrain project or Toyota V8 diesel engine.
What Is the Toyota 1VD-FTV Engine?
The Toyota 1VD-FTV is a 4.5-liter V8 diesel engine belonging to Toyota’s VD engine family. It uses an 86.0 mm bore and 96.0 mm stroke, giving it a total displacement of 4,461 cc. The engine uses a 90-degree V8 configuration and a compact-graphite/vermicular-graphite cast-iron block designed for high structural strength.
Toyota developed the engine with durability, torque delivery and off-road performance in mind. Its applications have included the Toyota Land Cruiser 200, Land Cruiser 70 and Lexus LX450d, although exact engine specifications vary according to model year and market.
Toyota 1VD-FTV Engine Specifications
| Specification | Toyota 1VD-FTV |
|---|---|
| Engine Code | 1VD-FTV |
| Engine Type | V8 Diesel |
| Displacement | 4,461 cc / 4.5L |
| Cylinders | 8 |
| Configuration | 90° V8 |
| Valvetrain | DOHC, 32 valves |
| Bore | 86.0 mm |
| Stroke | 96.0 mm |
| Compression Ratio | Approximately 16.8:1 |
| Fuel System | Common-rail direct injection |
| Turbocharging | Turbocharged; twin-turbo versions available |
| Typical Output Range | Approximately 162–195 kW depending on version |
| Typical Torque Range | Approximately 430–650 Nm depending on version |
| Block Material | High-strength cast iron/CGI |
| Main Applications | Toyota Land Cruiser 200, Land Cruiser 70, Lexus LX450d |
Toyota’s published Land Cruiser specifications confirm the 4,461 cc displacement, V8 32-valve DOHC configuration and common-rail fuel system. Different versions were offered with different power and torque ratings depending on transmission, emissions specification and market.
1VD-FTV Horsepower and Torque
One of the main reasons buyers look for a 1VD-FTV engine for sale is its strong low- and mid-range torque.
Early Land Cruiser specifications list outputs around 162 kW at 3,600 rpm for manual-transmission applications and 173 kW at 3,200 rpm for certain automatic-transmission versions, with torque ratings of approximately 430 Nm and 615 Nm respectively. Later specifications for certain twin-turbo versions reach approximately 195 kW and 650 Nm.
This broad torque delivery makes the engine particularly suitable for heavy SUVs, off-road vehicles, towing applications and other projects where usable low-speed pulling power is important.
Toyota 1VD-FTV Twin-Turbo Diesel Technology
Many later 1VD-FTV configurations use twin turbochargers to improve air delivery and torque response.
The combination of turbocharging and common-rail direct injection allows the engine to produce substantial torque without requiring extremely high engine speeds. Toyota’s launch material for the Land Cruiser V8 described the 4.5-liter V8 diesel as a twin-turbocharged engine designed around high power, broad torque delivery, fuel efficiency and durability.
When purchasing a replacement 1VD-FTV, it is important to identify the exact engine generation and specification because components and calibration can differ between markets and model years.
Toyota Land Cruiser 1VD-FTV Applications
The 1VD-FTV has been used in several Toyota and Lexus applications, including:
- Toyota Land Cruiser 200 Series
- Toyota Land Cruiser 70 Series
- Lexus LX450d
- Selected regional and export-market configurations
The Land Cruiser 200 is particularly associated with the 4.5L V8 diesel version. Toyota documentation identifies the 1VD-FTV as the 4.5-liter diesel engine used in the Land Cruiser 200 and provides different specifications depending on transmission and market.
Why Buy a Toyota 1VD-FTV Engine?
A replacement 1VD-FTV can be a practical solution when rebuilding an existing diesel engine is uneconomical or when a complete replacement powerplant is required.
1. Strong V8 Diesel Construction
The engine uses a high-strength cast-iron block designed for demanding operating conditions. The compact-graphite iron construction is one of the engineering features associated with the VD engine family.
2. High Torque
Depending on specification, the 1VD-FTV can deliver more than 600 Nm of torque, making it well suited to heavy 4WD and towing applications.
3. Proven Land Cruiser Platform
The engine was designed for one of Toyota’s most recognized heavy-duty four-wheel-drive platforms, making it attractive to Land Cruiser owners and specialized vehicle builders.
4. Large-Displacement Diesel Performance
With 4.5 liters of displacement and eight cylinders, the 1VD-FTV offers a different driving and torque characteristic from Toyota’s smaller four-cylinder diesel engines.
What Is Included With a 1VD-FTV Engine?
Engine packages can differ depending on the seller and the condition of the unit. A replacement engine may be supplied as a long block, complete engine or complete take-out assembly.
Depending on availability, customers should confirm whether the engine includes:
- Complete long block
- Cylinder heads
- Intake manifold
- Exhaust manifolds
- Turbochargers
- Fuel injectors
- High-pressure fuel system components
- Common-rail components
- Wiring harness
- Engine sensors
- Alternator
- Starter motor
- Engine accessories
- Engine mounts
- Flywheel or flexplate
- Engine control components
Important: Always confirm exactly what is included before purchasing because the specification of a 1VD-FTV engine can vary considerably between applications.
1VD-FTV Engine Compatibility
If you are purchasing a Toyota 1VD-FTV engine for sale in the USA, compatibility should be checked using the original vehicle’s VIN, model year, engine code, transmission type and market specification.
A visually similar 1VD-FTV may not necessarily be a direct plug-and-play replacement.
Important compatibility points include:
- Engine generation
- Model year
- Land Cruiser 200 or 70 Series application
- Automatic or manual transmission
- ECU and wiring configuration
- Emissions equipment
- Turbocharger specification
- Fuel-system configuration
- Intake and exhaust configuration
- Accessory arrangement
- Mounting configuration
Buying a 1VD-FTV Engine in the USA
Customers searching for a 1VD-FTV engine for sale USA should consider more than the engine’s advertised price.
Before placing an order, request:
- Engine code confirmation
- Model-year information
- Compression or running-test information where available
- Mileage or usage information when known
- Photos of the actual engine
- Included components
- Warranty terms
- Shipping options
- Compatibility confirmation
- Export/import documentation where applicable
At Forged & Stocked Engines, providing accurate engine information is essential because buyers may be using the engine for a direct replacement, restoration, conversion or performance project.
1VD-FTV Engine Weight
Published technical information places the approximate engine mass in the 320–360 kg range, depending on configuration and equipment. A complete engine with turbochargers, accessories, wiring and other attached components can weigh more than the basic engine assembly.
For shipping purposes, buyers should therefore ask for the actual packed weight and crate dimensions rather than relying only on the bare-engine weight.
Shipping a Toyota 1VD-FTV Engine in the USA
A 1VD-FTV is a large and heavy engine, so proper packaging is important.
For domestic USA shipments, an engine can typically be prepared on a heavy-duty pallet or inside a suitable engine crate. International shipments may require stronger export packaging and additional documentation.
A professional shipment should protect:
- Turbochargers
- Fuel-system components
- Wiring connectors
- Sensors
- Aluminum components
- Oil and coolant openings
- External accessories
The engine should also be securely restrained so that it cannot move inside the crate during transportation.
Used, Rebuilt or Replacement 1VD-FTV Engine?
When searching for a Toyota 1VD-FTV V8 diesel engine for sale, buyers will normally encounter used, tested, rebuilt and replacement engine options.
Used 1VD-FTV Engine
A used engine can provide a cost-effective replacement, especially when the engine has been inspected and its condition is documented.
Tested 1VD-FTV Engine
A tested engine is preferable when the seller can provide evidence of running condition, compression results, oil-pressure information or other inspection details.
Rebuilt 1VD-FTV Engine
A professionally rebuilt engine may be appropriate for customers looking for refreshed internal components and a more controlled specification. The exact rebuilding process should always be confirmed with the supplier.
Common Questions About the Toyota 1VD-FTV
Is the 1VD-FTV a V8 diesel?
Yes. The 1VD-FTV is a 4.5-liter V8 diesel engine with an eight-cylinder, 32-valve DOHC configuration.
How big is the Toyota 1VD-FTV?
The engine has a displacement of 4,461 cc, commonly described as a 4.5-liter diesel.
How much power does a 1VD-FTV make?
Power varies by generation and market. Toyota documentation lists examples ranging from approximately 162 kW to 195 kW, while torque can range from approximately 615 Nm to 650 Nm in later/high-output configurations.
What vehicles use the 1VD-FTV?
The engine has been used in applications including the Toyota Land Cruiser 200, Toyota Land Cruiser 70 and Lexus LX450d.
Is the 1VD-FTV turbocharged?
Yes. The 1VD-FTV is a turbocharged diesel, with twin-turbo configurations used in several Land Cruiser applications.
Is the 1VD-FTV available for sale in the USA?
Availability depends on current inventory and the exact engine specification. Buyers should confirm the engine code, generation, condition, included accessories and compatibility before ordering.
Buy a Toyota 1VD-FTV V8 Diesel Engine
If you are searching for a Toyota 1VD-FTV V8 diesel engine for sale in the USA, Forged & Stocked Engines can help you identify the appropriate engine specification for your project.
Whether you need a Land Cruiser 200 replacement engine, Toyota 4.5L V8 diesel engine, 1VD-FTV complete engine or diesel engine for a specialized project, verify the engine code and application before purchasing.
Contact Forged & Stocked Engines for current availability, engine specifications, photos, pricing, warranty information and shipping options.
